1562SC Series Semi Concealed
Mortise EMLock®

The SDC Hi/Shear® 1562SC and 1562SCHDB are semi-concealed, high security, failsafe locking mechanisms, with superior appearance. The patented Hi/Shear® electromagnetic lock design incorporates a “floating” armature assembly and special alloy steel locking “tabs” on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors.

Hi/Shear® magnetic locks are ideal for use on commercial grade hollow metal and wood doors and frames and Herculite doors without top rails.

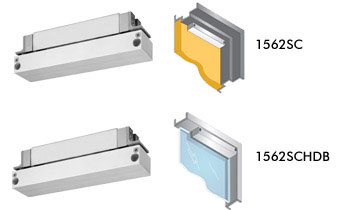

1562SC SDC HiShear® Magnetic Shear Lock, Semi Concealed, 2000lbs, 12/24VDC, 628 Anodized Aluminum Finish


1562SCHDB SDC HiShear® Electromagnetic Shear Lock, Semi Concealed w/Glass Door Bracket, 2000lbs, 12/24VDC, 628 Anodized Aluminum Finish


Features
  • Lateral and Vertical Alignment Adjustment
  • Door Static Sensor
  • Field Adjustable Shear Stops
  • Auto Sensing 12/24VDC Input
  • ANSI/BHMA Grade 1 Conpliant
  • BHMA Certified Holding Force
  • UL, CSFM, MEA Listed
