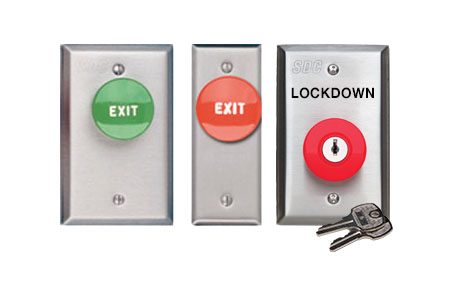

430 Series Mushroom Exit Switch

The SDC 430 Heavy Duty Industrial Series incorporates a 1 1/2'' round mushroom button with heavy duty contacts. The assembly is capable of withstanding high impact and is ideal for heavy duty high frequency use.

1 Gang


431C AA (On/Off) NC SPST


431O AA (On/Off) NO SPST


432C Momentary NC SPST


432O Momentary NO SPST


432KUR Latching/ key reset DPST


432KLDUR Lockdown key reset DPST, LOCKDOWN


432KLDURL2 Lockdown key reset DPST, 1 red, 1 green LED, LOCKDOWN


434 Momentary DPST


435 AA (On/Off) DPST

2 Gang


433 Momentary with Electronic Timer Module, Adj. 1-60 Seconds. 12/24V AC/DC, SPDT 2A Contact

431CN AA (On/Off) NC SPST


431ON AA (On/Off) NO SPST


432CN Momentary NC SPST


432ON Momentary NO SPST


432KNUR Latching/ key reset DPST


434N Momentary DPST


435N AA (On/Off) DPST


Features
  • 1.5” Mushroom Exit Switches
  • Heavy Duty to Withstand Impact
  • Water Resistant Contacts
  • Ideal for High Frequency Use
  • Green Button standard - Specify R for Red Button


The SDC 433KLDUR and 432KUR latches when depressed and must be reset with the built-in-key. Applications include alarm, panic alarm and emergency door release where systems are restored by authorized personnel only.
Red Button Standard


10TD

Mini Timer, Adj. 1-60 seconds
12/24VDC
N.O Trigger input
2 Amp SPDT output
