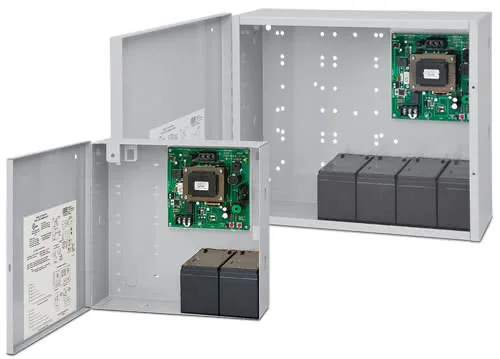

631RF 1.5 Amp Power Supply

The SDC 631RF Power Supplies have been developed specifically to support electric locks and access controls. The high performance, heavy-duty circuitry is ideal for inductive loads and multi-door applications. The modular design is built around several different application control modules to meet your specific needs for virtually any electric lock system. SDC power supplies are designed to provide a well organized installation for individual or multi-door systems that may include locking devices, access controls, station controls and consoles for remote control, annunciation and fire/life safety system interface.

Options: Key locked cover; 6 ft power cord; cover or interior mounted on-off switches; manual reset switches; 7 day, skip a day timer; Rechargeable batteries.

Multiple fuse protected outputs: Fuse modules provide protection for 4 or 8 individual circuits.
Dual 12 and 24VDC output capability: 12VDC voltage regulators enable both 12VDC and 24VDC output capability for 12 and 24VDC components with one power supply.

Universal and Relay Modules: Modules provide interface and control capability for single and multiple stations.

Programmable Door Controllers: Microprocessor based controllers provide up to seven different field selectable application modes for two three or four stations to meet individual circuit or communicating multi-station logic requirements.

631RF SDC Power Supply/Charger, 12/24VDC, 1.5 Amp, Emerg. Release, 12" x 12" Cabinet, UL, Class 2


631RFA SDC Power Supply/Charger, 12/24VDC, 1.5 Amp, Emerge. Release, 16" x 14" Cabinet, UL, Class 2


12VR 12VR - Module, Auxiliary 12VDC @ 500 mA Output, 24VDC input


Features
  • Field slectable 12 or 24VDC, regulated and filtered
  • Auto resetting output circuit protection
  • Isolated 13.5/27VDC battery charger
  • Low battery disconnect
  • Emergency release input
  • Input, output and battery status LED's
  • Choice of output and door control modules
