Accessories 7500 Series HiTower Mod Electrification
Datasheet
3 Part Spec 7500 Series HiTower Mod Electrification

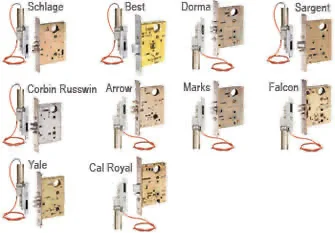

Factory electrification of major brand mechanical locksets provided by others. Including, Schlage, Corbin Russwin, Yale, Falcon, Sargent, Dorma, Marks, Arrow, Best Mortise Lock and Exit Device.
7530 SDC HiTower® FAILSAFE Frame Actuator Controlled Mortise Lockset, Conversion, Locked Inside/Outside --- Choice of Major Brands
7550 SDC HiTower® FAILSAFE Frame Actuator Controlled Mortise Lockset, Conversions, Locked Outside Only --- Choice of Major Brands --- Approved for Stairtowers
S7560* SDC HiTower® FAILSECURE Frame Actuator Controlled Schlage L9080 Mortise Lockset Conversions, Locked Inside/Outside
S7570* SDC HiTower® FAILSECURE Frame Actuator Controlled Schlage L9080 Mortise Lockset Conversions, Locked Outside Only
R7530 SDC HiTower® FAILSAFE Frame Actuator Controlled Schlage Mortise Lockset Conversion, Locked Inside/Outside --- Retrofits SDC 5000 Series
R7550 SDC HiTower® FAILSAFE Frame Actuator Controlled Schlage Mortise Lockset Conversion, Outside Locked Only --- Retrofits SDC 5000 Series --- Approved for Stairtowers
Features - Choice of 24VDC, 24VAC, 115VAC
- Fits standard ANSI 4 7/8” strike prep (Except S7560 & S7570)
- Alignment adjustment for wide door gap
- Key latch retraction
- *Fits 1 ¾” to 2” frames, actuator for 1¼” – 1½” frames opt.
- Choice of architectural finishes
- ANSI Grade 1 Compliant
- UL Listed for 3 hr 'A' label fire rated doors
- CSFM Listed, MEA Listed
- *2" frame required for failsecure, non-standard 5-3/4" strike plate.
