Mounting Kits & Hardware

Top Jamb Mounting Brackets


Top Jamb Mounting Kits accommodate the installation of a standard magnetic lock to the pull side of hollow metal doors or wood door openings.

TJ1 Top Jamb Mounting Kit, Single for 1511, 1571



TJ2 Top Jamb Mounting Kit, Double, for 1512, 1572


TJ81 Top Jamb Mounting Kit, Single for 1581



TJ82 Top Jamb Mounting Kit, Double, for 1582


Universal Glass Door Mounting Kit


Glass door mounting kits accommodate the installation of the lock armature assemblies to glass doors without top rails.


HDB1 Single Kit for 1511, 1571, or 1581


HDB2 Double, 2 single kits

Door Coordinator Lock Mounting Kit


DC-1 Door coordinator mounting bracket for single models 1511 and 1571.



DC-2 Door coordinator mounting bracket for double models 1512 and 1572.


Architectural Housings


Vertical Housings - Side jamb mount, providing 2400 or 3300 lbs of holding force.

1572VV82 Vertical Housing for 1572 EMLock, 82” length, for 84” opening - INCLUDES 1572 lock


1512VV82 Vertical Housing for 1512 EMLock, 82” length, for 84” opening - INCLUDES 1512 lock


CV Custom length.


Pre-Drilled & Tapped Header Bracket


For openings with center hung glass doors, universal header brackets extend the lock mounting surface of 4" and 4.5" aluminum frames. Brackets are pre-drilled and tapped with wire chase.

UB11 Universal Header Bracket, 1" x 1" x 11”, for 1511, 1513, 1571, 1573, 1511S/T, 1511DE, 1571DE



UB12 Universal Header Bracket, 1" x 1" x 22" for 1512, 1572


Spacer Bracket


For concrete filled frames & aluminum frame with blade stop

Application: Aluminum frames with blade stop - lowers EmLock below blade stop. Concrete filled hollow metal frames provides multiple points for concealed wire entry

UF11V 1/2” x 1-1/2” x 11”. Spacer Bracket for 1511,1513, 1571, 1573, 1511S, 1511DE, 1571DE.


UF12V 1/2” x 1-1/2” x 22”. Spacer Bracket for 1512 and 1572.


UF81V 1/2” x 1-1/4” x 8-3/4”. Spacer Bracket for 1581.


UF82V 1/2” x 1-1/4” x 17-1/2”. Spacer Bracket for 1582.


Filler Plates


Available in several sizes for a variety of frame dimensions, filler plates extend narrow stops to provide a proper mounting surface for the magnetic lock on the underside of a hollow metal frame.

FP01Filler Plate, Single, 1/8" x 1-1/4" x 8-3/4", for 1581


FP02 Filler Plate, Single, 1/4" x 1-1/4" x 8-3/4", for 1581


FP03 Filler Plate, Single, 3/8" x 1-1/4" x 8-3/4", for 1581


FP04 Filler Plate, Single, 1/2" x 1-1/4" x 8-3/4", for 1581


FP05 Filler Plate, Single, 5/8" x 1-1/4" x 8-3/4", for 1581


FP11 Filler Plate, Single, 1/8" x 1-1/4" x 11", for 1511, 1513, 1571, 1573, 1581S, 1511S/T, 1511DE, 1571DE


FP12 Filler Plate, Single, 1/4" x 1-1/4" x 11" for 1511, 1513, 1571, 1573, 1581S, 1511S/T, 1511DE, 1571DE


FP13 Filler Plate, Single, 3/8" x 1-1/4" x 11" for 1511, 1513, 1571, 1573, 1581S, 1511S/T, 1511DE, 1571DE


FP14 Filler Plate, Single, 1/2" x 1-1/4" x 11" for 1511, 1513, 1571, 1573, 1581S, 1511S/T, 1511DE, 1571DE


FP15 Filler Plate, Single, 5/8" x 1-1/4" x 11" for 1511, 1571, 1513, 1573, 1511S, 1511T, 1511DE, 1571DE


FP21 Filler Plate, Single, 1/8" x 1-1/4" x 22" for 1512, 1572


FP22 Filler Plate, Single, 1/4" x 1-1/4" x 22" for 1512, 1572


FP23 Filler Plate, Single, 3/8" x 1-1/4" x 22" for 1512, 1572


FP24 Filler Plate, Single, 1/2" x 1-1/4" x 22" for 1512, 1572


FP25 Filler Plate, Single, 5/8" x 1-1/4" x 22" for 1512, 1572


FP30 Filler Plate, Single, 1/8" x 1-1/4" x 17", for 1582


FP31 Filler Plate, Single, 1/4" x 1-1/4" x 17", for 1582


FP32 Filler Plate, Single, 3/8" x 1-1/4" x 17", for 1582


FP33 Filler Plate, Single, 1/2" x 1-1/4" x 17", for 1582


FP34 Filler Plate, Single, 5/8" x 1-1/4" x 17", for 1582


Armature Mounting Plate

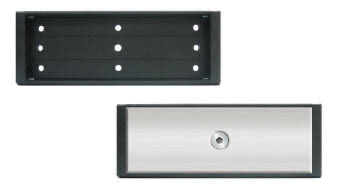

The AR Mounting plate provides a solution for mounting the EMLock® armature to the top rail of herculite, aluminum and glass, wood and hollow metal doors that do not permit the use of thru bolts.

AR11Y Armature mounting plate for 1511, 1571. 335 Black Anodized


AR11YD Armature mounting plate with DPS for 1511, 1571. 335 Black Anodized


Angle Brackets


Available in several sizes to meet different installation requirements, angle brackets are used for extending shallow door frames to provide a proper mounting surface for the magnetic lock.

AB01Angle Bracket, 1" x 1" x 8-3/4", for 1581



AB02 Angle Bracket, 1" x 1-1/2" x 8-3/4", for 1581


AB03 Angle Bracket, 1-1/2" x 1-1/2" x 8-3/4", for 1581



AB04 Angle Bracket, 2" x 1-1/2" x 8-3/4", for 1581


AB11 Angle Bracket, 1" x 1" x 11", for 1511, 1513, 1571, 1573, 1581S, 1511S/T, 1511DE, 1571DE



AB12 Angle Bracket, 1" x 1-1/2" x 11", for 1511, 1513, 1571, 1573, 1581S, 1511S/T, 1511DE, 1571DE


AB13 Angle Bracket, 1-1/2" x 1-1/2" x 11", for 1511, 1513, 1571, 1573, 1581S, 1511S/T, 1511DE, 1571DE



AB14 Angle Bracket, 2" x 1-1/2" x 11", for 1511, 1513, 1571, 1573, 1581S, 1511S/T, 1511DE, 1571DE


AB21 Angle Bracket, 1" x 1" x 22" for 1512, 1572



AB22 Angle Bracket, 1" x 1-1/2" x 22" for 1512, 1572


AB23 Angle Bracket, 1-1/2" x 1-1/2" x 22" for 1512, 1572



AB24 Angle Bracket, 2" x 1-1/2" x 22" for 1512, 1572


AB30 Angle Bracket, 1" x 1" x 17", for 1582



AB31 Angle Bracket, 1" x 1-1/2" x 17", for 1582


AB32 Angle Bracket, 1-1/2" x 1-1/2" x 17", for 1582



AB33 Angle Bracket, 2" x 1-1/2" x 17", for 1582


Reusable heavy duty drill fixture

Reusable heavy duty drill fixture

1511-DF Heavy duty drill fixture for 1571 and 1511


1581-DF Heavy duty drill fixture for 1580


Blind nut placement tool

Blind Nut Placement Tool

BN-PT Blind Nut Placement Tool


BN-50 Blind Nuts, 10/32, 50 Pack


1511-390AMP Retrofit Armature Mounting Plate


For customers with high security requirements, the 1511-390MP Armature Mounting Plate provides an easy solution for replacing Locknetics 390+ Series with SDC’s Grade 1, 1510 Series Emlock (sold separately).

The 1511-390AMP mounts to the existing sex bolt hole using the existing armature hardware, while only requiring only a minor modification to the frame.

1511-390AMP Retrofit Armature Mounting Plate

E1200-390MP Retrofit Mounting Plate


The E1200-390MP Mounting Plate provides the simplest and most economical solution for retrofitting Locknetics 390+ Series lock:

The E1200-390MP utilizes the existing mounting plate holes to mount SDC’s E1200 Excel Series lock (sold seperately).

E1200-390 MP Retrofit Mounting Plate
