LOCKDOWN CONTROL WITHOUT BARRICADES

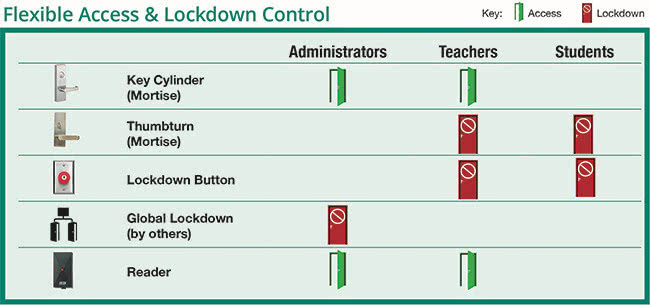

Code Compliant, Flexible Access & Lockdown Control

No classroom security solution is complete unless it also addresses life safety. For example, fire is statistically more than three times likely to happen than an active shooter situation in a school*. School administrators considering security, risk mitigation and liability should only consider traditional, tested, locking products that meet the code requirements for providing life safety in addition to security.

SDC's Classroom Lockdown Solution products are time-tested components providing security, life safety, and flexible access & lockdown control. They allow the door to be locked from the inside of a classroom without requiring the door to be opened, yet can provide notification and allow authorized access by staff and emergency responders in case someone inside the room intends to cause harm or injury.

SDC's solution provides specifically designed classroom security locking functions that allow users to quickly lock the door from either side and meet code requirements for free egress, fire protection and accessibility. They are the fastest and safest solution for “lockdown” situations and minimize the possibility of an exit being blocked during an emergency.

The SDC Classroom Lockdown Solution addresses three simple classroom door locks guidelines to ensuring life safety and security◆:

1 Opens from inside without prior knowledge. One lever-turn operation.
2 Locked and unlocked from the inside of a classroom while still allowing staff entry in an emergency.
3 Locked automatically or have a simple locking mechanism such as a pushbutton, key, card, fob, fingerprint, etc., that can be locked from inside the classroom without having to open the door.



  • Z7882
    • Z7882 SDC Brand Locksets with manual deadbolt (Privacy Application)
    • Locked Outside only, Failsecure
    • Deadbolt projected by Key Cylinder or Thumbturn. Throwing Deadbolt locks out electric operation of outside lever
    • Lock status for notification
    • Installed in the center hinge position of the door
    • Transfer power and monitoring signals to door and frame
    • PTM Concealed Electric Power Transfer Device
    • PTH Electric Power Transfer Hinge
    • WPT Wireless Power Transfer Device*
      * May require fire door to be re-certified
    • 632RF Power Supply with 12” Cabinet
    • Field selectable 12 or 24VDC, regulated and filtered
    • Universal Controler UR1
    • Auto resetting output circuit protection
    • Batteries Optional
    • WRC Series 2 Channel Wireless receiver
    • Two button pendant, wireless transmitter
    • For single or dual door access control

  • EA100
    • EA100 Multi-Mode Exit Annunciator
    • Externally selectable color modes
    • Externally selectable Solid or Flashing Modes
    • SDC 430 Heavy Duty Industrial Series
    • 1 1/2” round mushroom button
    • 432KLDUR Lockdown with Key Reset
    • EH Series magnetic door holder and releasing device
    • EH30 Surface Mount
    • Release door by remote switch
    • Door Closer by others
    • Ensure Doors Are Closed Prior to a Lockdown Situation

Is Your Classroom Safe from Intruders?

* “Finding Reasonable Solutions to the Problem of School Safety.” April Dalton. Doors & Hardware, March 2015.
◆ Door Security & Safety Foundation: www.doorsecuritysafety.org
