1580 Series

650lb Holding Force EMLocks

SDC’s electromagnetic locks are suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability. The patented EMLock® design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade and maintain. The housing design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLocks® are UL listed and ANSI grade 1 compliant.

EMLocks® are compatible with any access control system and covered by a lifetime limited warranty.

SDC’s 1580 series locks provide 650 lbs of holding force for traffic control and are adaptable to virtually any application when used in conjunction with SDC’s vast offering of mounting brackets, kits and hardware.

x See Datasheet For More Info
  • UL 294 Access Control System Units
  • UL 10B Fire Tests of Door Assemblies
  • UL 10C Positive Pressure Fire Tests of Door Assemblies
  • ULC-S104 Standard Method for Fire Tests of Door Assemblies
  • ULC-S533 Egress Door Securing and Releasing Devices
  • Uniform Building Code Standard 7-2 Fire Test of Door Assemblies (1997)
  • ANSI/BHMA A156.23 Grade 1
  • CSFM Listed 3774-0324:100
  • MEA City of New York 61-95-E.

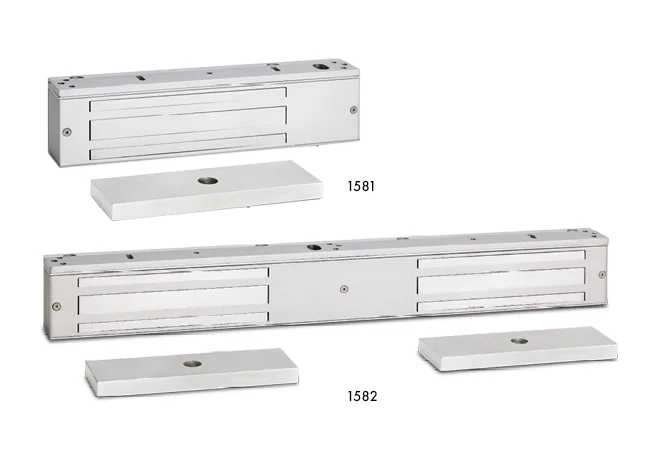

1581V
Single EMLock, 650lbs, 628
1581VD
Single EMLock, 650lbs, 628, DPS
1581X
Single EMLock, 650lbs, 710
1582V
Double EMLock, 650lbs, 628
TJ81V
Top Jamb Mounting Kit, Single
TJ82V
Top Jamb Mounting Kit, Double
HDB1V
Glass Door Mounting Kit, 2-1/2” x 1-1/2” x 8-1/2”
HDB2V
Glass Door Mounting Kit, 2-1/2” x 1-1/2” x 8-1/2”, Qty 2
AB03V
Angle Bracket, 1-1/2” x 1-1/2” x 8-3/4”
AB04V
Angle Bracket, 2” x 1-1/2” x 8-3/4”
AB32V
Angle Bracket, 1-1/2” x 1-1/2” x 17-1/2”
AB33V
Angle Bracket, 2” x 1-1/2” x 17-1/2”
FP04V
Filler Plate, 1/2” x 1-1/4” x 8-3/4”
FP05V
Filler Plate, 5/8” x 1-1/4” x 8-3/4”
FP33V
Filler Plate, 1/2” x 1-1/4” x 17-1/2”
FP34V
Filler Plate, 5/8” x 1-1/4” x 17-1/2”
1 See Complete List
