800AL Series

Vandal Resistant Key Switches

SDC’s 800AL series vandal resistant switch assemblies come standard with 1/4” think aluminum faceplates and a heavy duty rated switches. Available in a narrrow faceplate size to mount directly to the door frame or single gang sizes to be box mounted.

700 Single Gang Key Switches

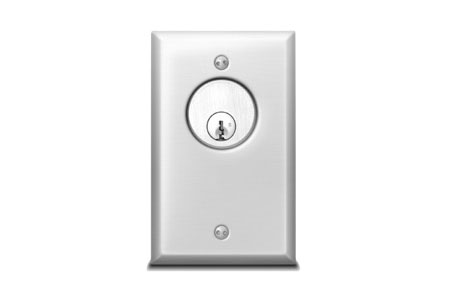

800AL Vandal Resistant Key Switches

V andal resistant single gang key switches feature a 1/4"  Aluminum faceplate with key cylinder recess and security screws and anti-tamper plugs.

801AL SDC Key Switch, 1-Gang, 1/4" Aluminum Plate, AA (on-off) SPDT, 6 Amp.

802AL SDC Key Switch, 1-Gang, 1/4" Aluminum Plate, Momentary SPDT, 6 Amp.

804AL SDC Key Switch, 1-Gang, 1/4" Aluminum Plate, with Mini TIMER MODULE, Adj. 1-60 Sec. SPDT, 2 Amp.

805AL SDC Key Switch, 1-Gang, 1/4" Aluminum Plate, AA (on-off) DPDT, 6 Amp.

806AL SDC Key Switch, 1-Gang, 1/4" Aluminum Plate, Momentary DPDT, 6 Amp.

807AL SDC Key Switch, 1-Gang, 1/4" Aluminum Plate, (L) Momentary SPDT, (R) Momentary SPDT, 6 Amp.

808AL SDC Key Switch, 1-Gang, 1/4" Aluminum Plate, (L) Momentary SPDT, (R) AA (on-off) SPDT, 6 Amp.

809AL SDC Key Switch, 1-Gang, 1/4" Aluminum Plate, (L) AA (on-off) SPDT, (R) AA (on-off) SPDT, 6 Amp.

810AL SDC Key Switch, 1-Gang, 1/4" Aluminum Plate, (L) Timer Module 1-60 Sec., (R) AA (on-off) SPDT.

811AL SDC Key Switch, 1-Gang, 1/4" Aluminum Plate, (L) Momentary DPDT, (R) Momentary DPDT, 6 Amp.

812AL SDC Key Switch, 1-Gang, 1/4" Aluminum Plate, (L) Momentary DPDT, (R) AA (on-off) DPDT, 6 Amp.

813AL SDC Key Switch, 1-Gang, 1/4" Aluminum Plate, (L) AA (on-off) DPDT, (R) AA (on-off) DPDT, 6 Amp.

700 Single Gang Key Switches

800ALN Narrow Vandal Resistant Key Switches

Vandal resistant narrow key switch for 1-3/4" frames. Features include a 1/4"  Aluminum faceplate with key cylinder recess and security screws and anti-tamper plugs.

Key cylinder specified separately or provided by others For key switches with one switch, turning key left or right actuates the switch. For key switches with two switches, turning key left actuates switch #1, turning key right actuates switch #2.

801ALN SDC Key Switch, Narrow, 1-3/4 x 1/4" Aluminum Plate, AA (on-off) SPDT, 6 Amp.

802ALN SDC Key Switch, Narrow, 1-3/4 x 1/4" Aluminum Plate, Momentary SPDT, 6 Amp.

804ALN SDC Key Switch, Narrow, 1-3/4 x 1/4" Aluminum Plate with Mini TIMER MODULE, Adj. 1-60 Sec. SPDT, 2 Amp.

805ALN SDC Key Switch, Narrow, 1-3/4 x 1/4" Aluminum Plate, AA (on-off) DPDT, 6 Amp.

806ALN SDC Key Switch, Narrow, 1-3/4 x 1/4" Aluminum Plate, Momentary DPDT, 6 Amp.

807ALN SDC Key Switch, Narrow, 1-3/4 x 1/4" Aluminum Plate, (L) Momentary SPDT, (R) Momentary SPDT, 6 Amp.

808ALN SDC Key Switch, Narrow, 1-3/4 x 1/4" Aluminum Plate, (L) Momentary SPDT, (R) AA (on-off) SPDT, 6 Amp.

809ALN SDC Key Switch, Narrow, 1-3/4 x 1/4" Aluminum Plate, (L) AA (on-off) SPDT, (R) AA (on-off) SPDT, 6 Amp.

810ALN SDC Key Switch, Narrow, 1-3/4 x 1/4" Aluminum Plate, (L) Timer Module 1-60 Sec., (R) AA (on-off) SPDT.

811ALN SDC Key Switch, Narrow, 1-3/4 x 1/4" Aluminum Plate, (L) Momentary DPDT, (R) Momentary DPDT, 6 Amp.

812ALN SDC Key Switch, Narrow, 1-3/4 x 1/4" Aluminum Plate, (L) Momentary DPDT, (R) AA (on-off) DPDT, 6 Amp.

813ALN SDC Key Switch, Narrow, 1-3/4 x 1/4" Aluminum Plate, (L) AA (on-off) DPDT, (R) AA (on-off) DPDT, 6 Amp.
