5 5

NEW & RETROFIT CONSTRUCTION

SDC electric strikes enable the electrical release of a locked mechanical latch or bolt and are well-suited for both new and retrofit construction. Compatible with any access control, SDC electric strikes are available in a variety of configurations to accommodate several types of mechanical locksets and door and frame styles - as well as failsafe and failsecure applications.
UniFLEX™ Electric Strikes Feature Interchangeable Faceplate Designs
Allowing For Multi-Application Strike Kits - One Part Number Covers It All

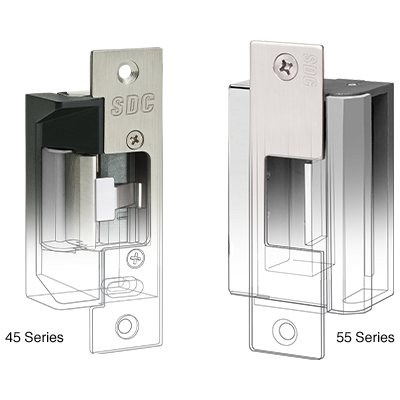

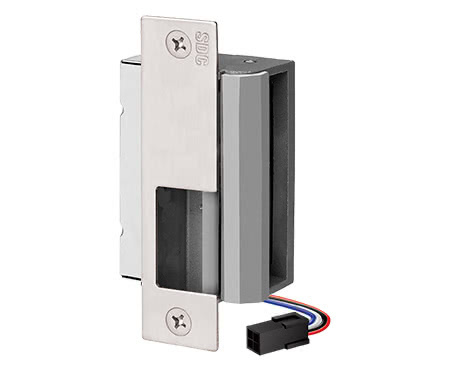

UniFLEX™ 55 Series
Heavy duty, heavy cast housing body and keeper

UniFLEX™ 55 series 3/4” latchbolt electric strikes are heavy duty, designed for installation in hollow metal frames for access control of cylindrical locksets, mortise locksets with or without deadbolts and mortise exit devices.

UniFLEX™ 45 Series
Low-profile, fewer moving parts, 45F models are fire-rated

UniFLEX™ 45 series 5/8” latchbolt electric strikes are centerline latch entry strikes designed for use with cylindrical locksets and mortise locksets without deadbolt for both metal and wood frames.

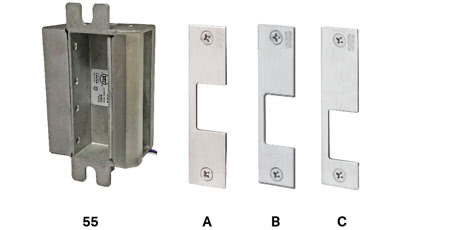

55-ABCU 55 Series Multi-Application Strike Kit

KIT COMPONENTS:
(1) 3/4” Latchbolt Electric Strike
(1) Cylindrical Faceplate
(1) Mortise Faceplate - Deadlatch Below
(1) Mortise Faceplate - Deadlatch Above

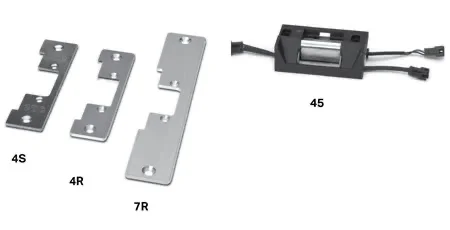

45-A 45 Series Multi-Application Strike Kit

KIT COMPONENTS:
(1) 5/8” Latchbolt Electric Strike
(1) 4-7/8” Square Corner Stainless Steel Faceplate
(1) 4-7/8” Radius Corner Aluminum Faceplate
(1) 7-15/16” Radius Corner Aluminum Faceplate

30 Series -
3/4” Pullman Latchbolt Electric

SDC’s 30 series 3/4” pullman latchbolt electric strikes are Kits designed Retrofit for ELR use with rim mount exit devices having pullman type latchbolts. 30 series strikes accept 3/4” throw pullman style latchbolts.

25 Series -
Value 1/2” Latchbolt Electric Strikes

SDC’s 25 series value 1/2” S4000 latchbolt electric strikes are SERIES Industrial Exit Devices centerline latch entry strikes designed for use with cylindrical locksets and metal frames. 25 series strikes accept 1/2” throw latchbolts or up to 9/16” throw latchbolts with 1/8” door gap.

15 Series -
Value 5/8” Latchbolt Electric Strikes

SDC’s 15 series value 5/8” S5000 latchbolt SERIES electric strikes are Storefront centerline Exit latch entry strikes Devices designed for use with cylindrical locksets and metal frames. 15 series strikes accept 5/8” throw latchbolts or up to ¾” throw latchbolts with 1/8” door gap.

SDC ELECTRIC STRIKE FAMILY
