Communicating Bathroom Package
Communicating Bathroom Package
Communicating Bathroom Package

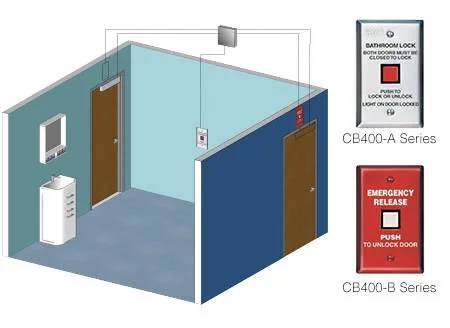

Pre-spec’d so you don’t have to. One part number covers it all, whether you’re looking for a mortise, cylindrical, or electromagnetic locking system. Each Shared Bathroom Package is complete with everything needed to ensure privacy and coordinate emergency access to a common bathroom facility from adjoining rooms in hospitals, long term care facilities, schools and dormitories.

MORTISE LOCK OPTION:

CBP-ME-78 Includes Eclipse style mortise locks (Z7850LQDE)

CBP-MG-78 Includes Galaxy style mortise locks (Z7850LQDG)

CYLINDRICAL LOCK OPTION:

CBP-CE-72 Includes Eclipse style cylindrical locks (Z7250EQ)

CBP-CG-72 Includes Galaxy style cylindrical locks (Z7250GQ)

ELECTRO MAGNETIC OPTION:

CBP-EM-81 Includes EMLock locking devices 650lb (1581VD)

CBP-EM-71 Includes EMLock locking devices 1200lb (1571VD)

CBP-EM-11 Includes EMLock locking devices 1650lb (1511VD)

PACKAGE COMPONENTS:
  • (2) Electrified Locking Devices
    (Mortise, Cylindrical or ElectroMagnetic)
  • (1) 1.5 Amp Power Supply with Universal Relay Module (631RFXUR1)
  • (2) Emergency Access Push Button Switches (CB400-B)
  • (1) System Activation Push Button Switch (CB400-A)
  • (2) Build-in Latch or Door Position Status Sensors (DPS , L)
  • (2) Power Transfer Hinges (not required for EMLocks) (PTH)

482R-KIT Wireless Push Plate Switch Kit - ROUND Switches
Every Shared Bathroom Package also includes a Riser Diagram, Components List, Method of Operation and Wiring Diagram to help you determine the materials and installation costs to complete your project bid.
