410 Series

Narrow Push Button Switches

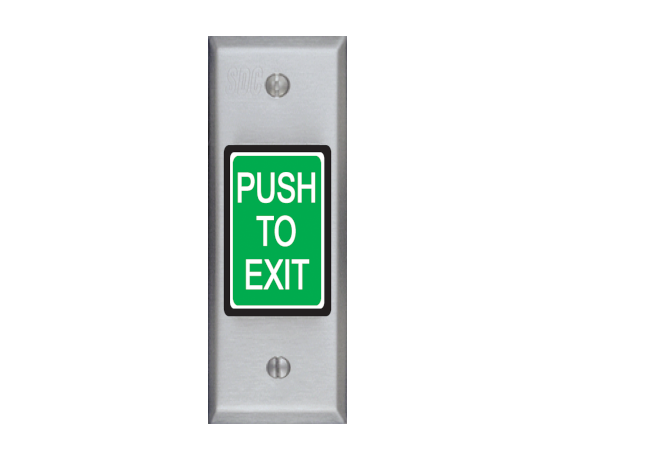

The illuminated switch button is two inches square for easy activation and is visually conspicuous. The high impact resistant material stands up to abuse. The “PUSH TO EXIT” sign complies with NFPA requirements.

The 410 series narrow frame mount exit switch assemblies include a large push button on a narrow frame mount plate with push switch signage “PUSH TO EXIT”.

Code compliant manual releasing devices and sensors 413MN exit switches used together with MD-31D motion sensors comply with manual releasing device and sensor device requirements for access-controlled egress doors per the following codes:

IBC International Code 1008.1.3.4

IFC International Fire Code 1008.1.3.4

NFPA 101 Life Safety Code


BOCA National Building Code 1017.4.5

SBCCI Standard Building Code 1012.7

x See Datasheet For More Info
  • UL 294 Access Control System Units*
  • * Only 413N and 413MN models are UL 294 listed.

Narrow, Momentary (MO), SPDT, 630
Narrow, Electronic Timer, Fixed (30 seconds), DPDT, 630
Narrow, Electronic Timer, Adjustable (1-60 seconds), DPDT, 630
Narrow, Pneumatic Timer, Adjustable (1-45 seconds), DPST, 630
