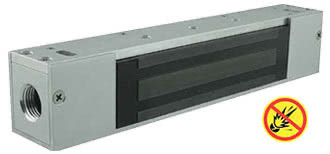

SDC’s EP17624 series explosion proof electromagnetic locks are specifically designed for applications where flammable vapors are cause for concern, like clean room, chemical plant, or refinery environments by eliminating the sparks or arc in the magnetic lock.
UL listed for use in hazardous locations class 1, division 2.
This unit is intended to be used in the following atmospheres: acetone, ammonium hydroxide, ATSM fuel C, benzene, methylethylketone, diethyl-ether, 2-nitropropane, ethyl-acetate, furfural, normal hexane, methyl alcohol.
Operating temperature for the magnetic lock will not exceed 185° F (85° C). Maximum ambient temperature is not to exceed 104° F (40° C). For supply connections, use a suitable wire with a minimum insulation temperature rating of 167° F (75° C).
This unit must be connected to a NEC (National Electric Code), NFPA 70) class 2 supply circuit rated for 24 VDC with a minimum current output of 500 mA and output power of 12 watts. UL listed SDC 600 series power controller is recommended.
EP17624TJ models include a Z bracket for top jamb, pull-side applications.x See Datasheet For More Info
- UL 228 Door Closers-Holders, With or Without Integral Smoke Detectors
- UL Classified for Hazardous Locations Class 1, Division 2
Single Explosion Proof Magnetic Lock, Side Conduit, 600lbs
Single Explosion Proof Magnetic Lock, Top Conduit, 600lbs
