7500 Pro Series

Solenoid Frame Actuator Controlled Mortise Locks

7500 Series

Solenoid Frame Actuator Controlled Mortise Locks

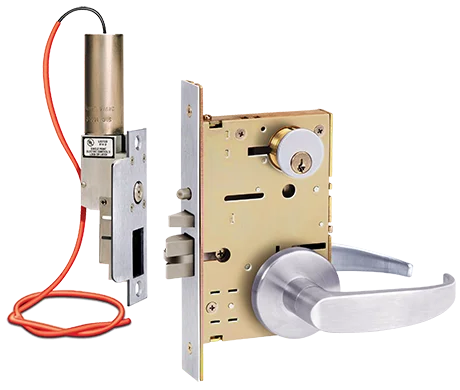

SDC manufactured lockset with electric frame actuator.
Options: Super narrow frame actuator for 1-1/4” to 1-1/2”; Latch Status; Latched and Deadlocked Status; 10 ft cable with connectors; RS Retrofit Strike; Extended Lip Strike; Actuator mortar guard back boxes.

Z7530 SDC HiTower® Frame Actuator Controlled Mortise Lockset, SDC Brand, Locked Inside/Outside, Failsafe
Z7550 SDC HiTower® Frame Actuator Controlled Mortise Lockset, SDC Brand, Locked Outside Only, Failsafe
Z7560 SDC HiTower® Frame Actuator Controlled Mortise Lockset, SDC Brand, Locked Inside/Outside, Failsecure
Z7570 SDC HiTower® Frame Actuator Controlled Mortise Lockset, SDC Brand, Locked Outside Only, Failsecure
ZY7550 SDC HiTower® Frame Actuator Controlled Mortise Lockset, replaces SDC modifications of discontinued manufacturer models: Falcon-LM581; Sargent-7704/7705; Corbin-9557L/2257; Russwin- 7059L; Arrow-1600EW; Yale-8705; Almet-5007; Best-35HEW


u Features
  • Choice of 24VDC, 24VAC, 115VAC
  • Fits standard ANSI 4 7/8” strike prep
  • Alignment adjustment for wide door gap
  • Key latch retraction
  • Compatible with standard and interchangeable core key systems

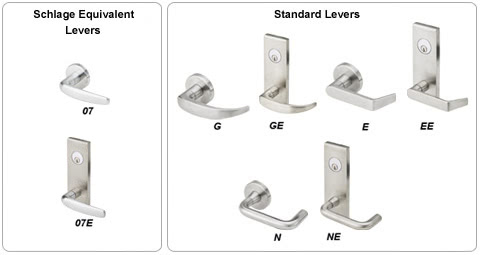

  • Choice of SDC lever trim
    *Fits 1 ¾” to 2” frames, actuator for 1¼” – 1½” frames opt.
  • Compatible with Schlage lever trim provided by others
  • Choice of architectural finishes
  • ANSI Grade 1 Compliant
  • UL Listed for 3 hr 'A' label fire rated doors
  • CSFM Listed, MEA Listed
    *2” frame required for failsecure
