3 Part Spec EntryCheck® E76
Standalone Electronic Mortise Locksets
Standalone Electronic Mortise Locksets

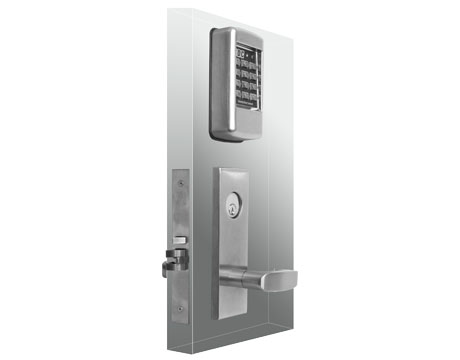

The E76 Series includes an SDC Mortise lock and is an indoor/outdoor standalone electronic battery powered solution, providing controlled access for basic and multi-level high security requirements. The E76 locksets are keypad or PC software programmable, and combine multiple access technology with efficient motorized locksets.

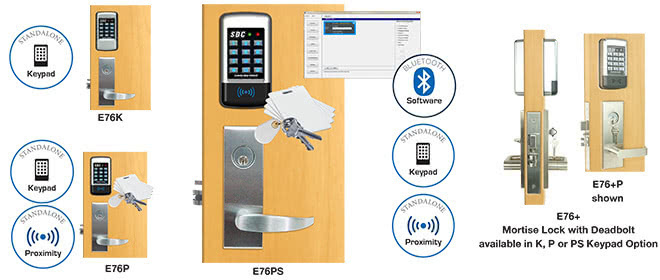

E76K Digital Keypad Only, with Mortise Lock
E76P Digital Keypad with Prox Reader, with Mortise Lock
E76PS Digital Keypad with Prox Reader and Software, with Mortise Lock
Features
E76P Digital Keypad with Prox Reader, with Mortise Lock
E76PS Digital Keypad with Prox Reader and Software, with Mortise Lock
Point-and-click Microsoft PC-based software
- Supports up to 1,000 unique doors
- Manage up to 3,000 unique users and credentials
- Manage individual door parameters, access schedules, user groups, holidays, temporary users, and more...
Features - Keypad or PC Software Programmable
- 3,000 Users, 32 Temporary Users
- 4 to 6 Digit PIN Codes
- 3 Passage Mode Option
- 32 Access Groups, Schedules
- 32 Holidays
- 4 Authority Levels
- Keypad Tamper Lockout
- Mechanical Key Override
- Battery Powered (4AA)
- Blue Backlit Cast Metal Keys
- Weather & Vandal Resistant
- Retrofit Existing Lock Door Prep
- Motorized SDC Mortise Lockset
- Heavy Duty ANSI Grade 1
- Vandal Resistant Lever Clutch Mechanism
