3 Part Spec EntryCheck® E77

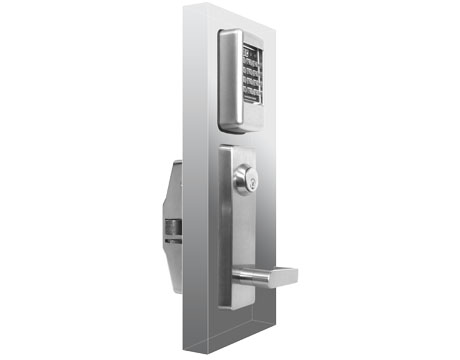

Standalone Electronic Exit Device
Standalone Electronic Exit Device
The E77 Series include an SDC rim exit device and trim. The E77 lockset are an indoor/outdoor standalone electronic battery powered solution, providing controlled access for basic and multi-level high security requirements. The E77 locksets are keypad or PC software programmable, and combine multiple access technology with efficient motorized exit devices.

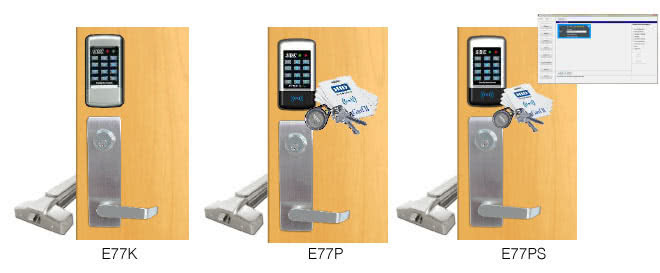

E77K Digital Keypad Only, with SDC S6100 Exit Device
E77P Digital Keypad with Prox Reader, with SDC S6100 Exit Device
E77PS Digital Keypad with Prox Reader and Software, with SDC S6100 Exit Device
Features
E77P Digital Keypad with Prox Reader, with SDC S6100 Exit Device
E77PS Digital Keypad with Prox Reader and Software, with SDC S6100 Exit Device
Point-and-click Microsoft PC-based software
- Supports up to 1,000 unique doors
- Manage up to 3,000 unique users and credentials
- Manage individual door parameters, access schedules, user groups, holidays, temporary users, and more...
Features - Keypad or PC Software Programmable
- 3,000 Users, 32 Temporary Users
- 4 to 6 Digit PIN Codes
- 3 Passage Mode Option
- 32 Access Groups, Schedules
- 32 Holidays
- 4 Authority Levels
- Keypad Tamper Lockout
- Mechanical Key Override
- Battery Powered (4AA)
- Blue Backlit Cast Metal Keys
- Weather & Vandal Resistant
- Retrofit Existing Lock Door Prep
- SDC S6100 Rim Exit Device
- Heavy Duty ANSI Grade 1
